EV Industry Trend-Setting Microtest to Offer New Total Testing Solutions

Vehicle Solutions

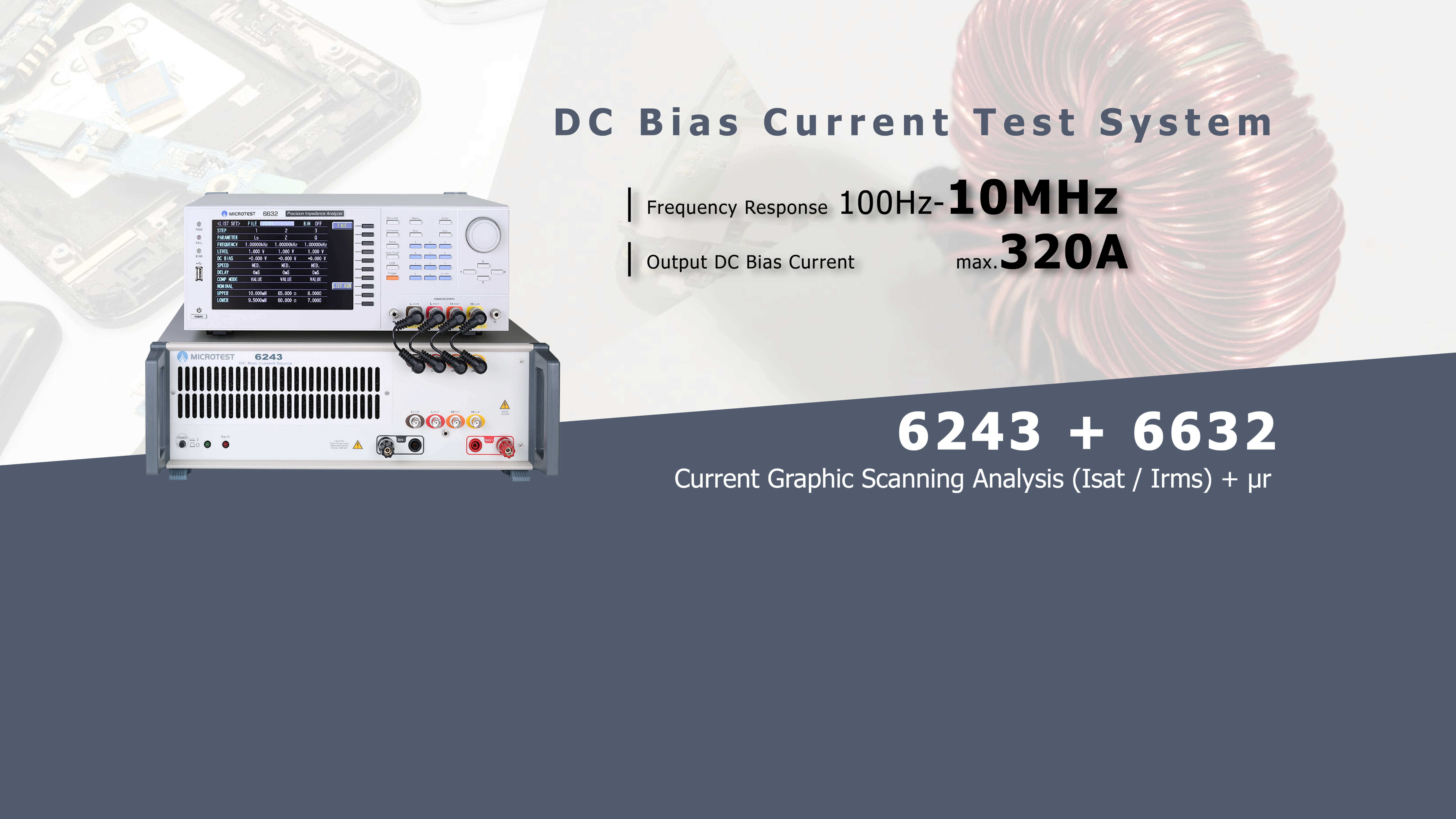

Microtest's DC-DC Power Solution 6632+6243/6632+6223 DC Bias Current Test System boasts frequency responses clocked at 100Hz to 10MHz, and an output current max at 320A, currently the industry's highest. What makes Microtest's solution unique is the system's software design. The 6632 offers a current graphical scan to inspect I sat and I rms. Engineers can analyze the curve of temperature changes and saturation of inductors and view the results in real-time to see if the specifications would burn out components due to the temperature. Under the list mode function, customers can select multiple parameters with just one setting and show all the test results simultaneously on the screen.

The areas in which the DC Bias Current Test System sees the most common application are testing passive components' power inductors, common mode chokes, and high-power devices for EV charging stations. In the EV area, testing components like EV turbochargers and EV systems would benefit the most from the DC Bias Current Test System.
