Power Meter/Power ATE System

Power Meter 7120 is used for measuring parameters related to AC/DC and DC/DC power sources. It operates within a frequency range of 15Hz to 100kHz and supports up to 50 harmonics analysis, making it suitable for testing products such as chargers, adapters, LED drivers, inverters, and DC/DC converters.

Wireless Charger Automatic Testing System 9901 offers a cost-effective solution for production lines, enabling quick setup and testing of wireless chargers with a power rating of up to 150W. It supports PD/QC protocols and foreign object detection (FOD). Test items include input, output, and protection characteristics. It provides up to 4 channel testing and comes with dual-cut test fixtures to significantly improve production line testing efficiency.
Power Meter/Power ATE System

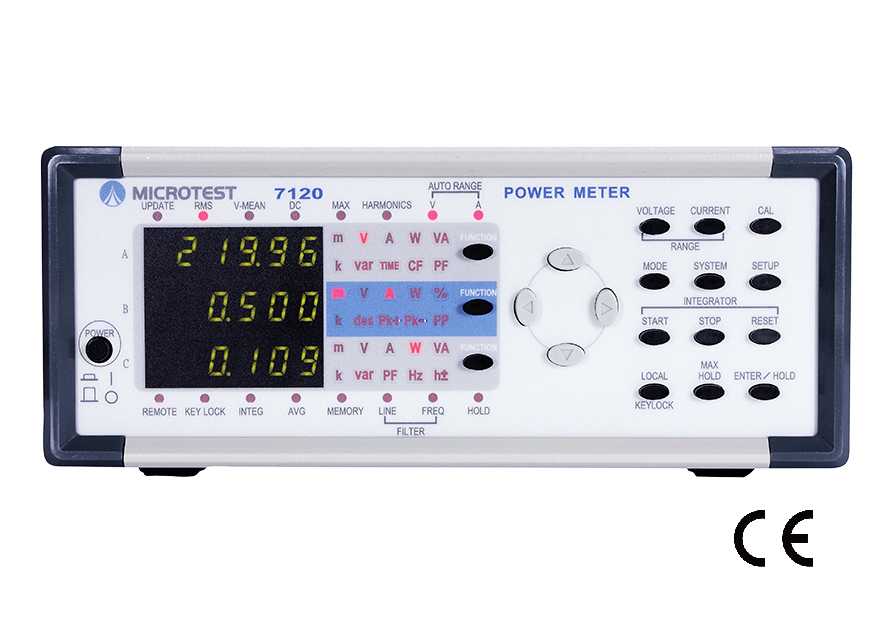

Single-Phase Power Meter|7120
Single-Phase Power Meter
7120
  •  AC / DC Dual amp/watt-hour meter
  • Wide range 0.001W-16KW
  • Connection software attached
  • Standby Power D.P.I. of 0.001W
  • With crest factor ratio display
  • Up to the 50 levels harmonic wave analysis capability
  • 1000 sets of measurement data storage space
  • Current crest factor is highest CF9
Inquiry Compare
Wireless Charger Automatic Test System|9901
Wireless Charger Automatic Test System
9901
  • Support PD 2.0, QC 2.0/3.0 protocols
  • Support FOD test (foreign object detection)
  • Provide statistical analysis report function
  • Suitable for DC-DC power supply product test (power 150W)
  • Provide a variety of expansion cards to quickly upgrade to more test functions
  • Equipped with double switching test fixture to switch left and right for highly efficient tests
Inquiry Compare
