Fixtures

Various fixtures for different products.
Fixtures
All Products
Components Testing Fixture Material Testing Fixture Safety Testing Fixture Transformer Testing Fixture Cable Harness Testing Fixture Motor Coil Testing Fixture DC Bias Voltage Test Fixture

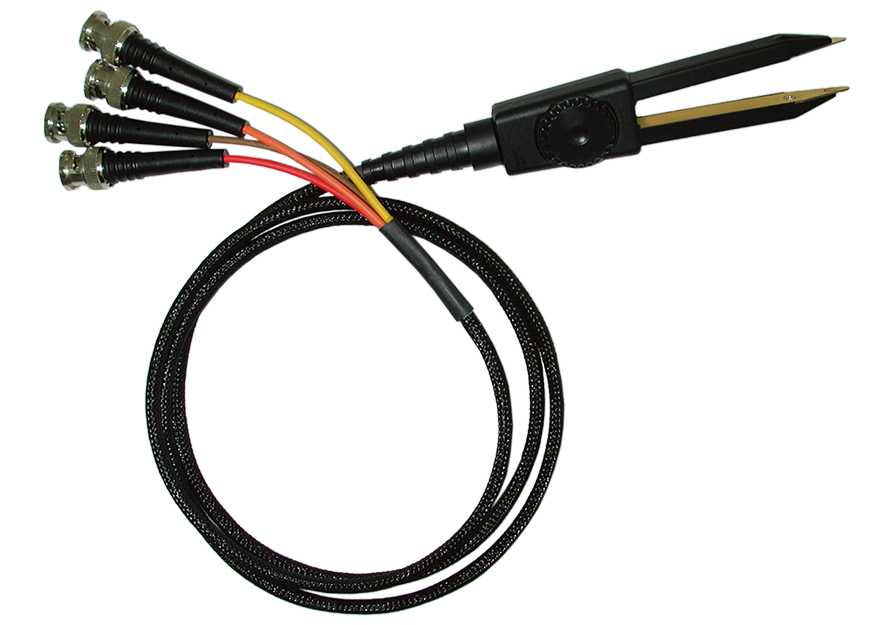

F423903 SMD Tweezers Test Leads
F423903 SMD Tweezers Test Leads
  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：2-Terminal
  • Cable Length(approx.)：1.5m (RG178)
  • Weight (approx.)： 195g
  • Applicable Models： 6363-6367
  • Frequency：DC to 1 MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
  • DUT Size：≤ 12mm
Inquiry Compare

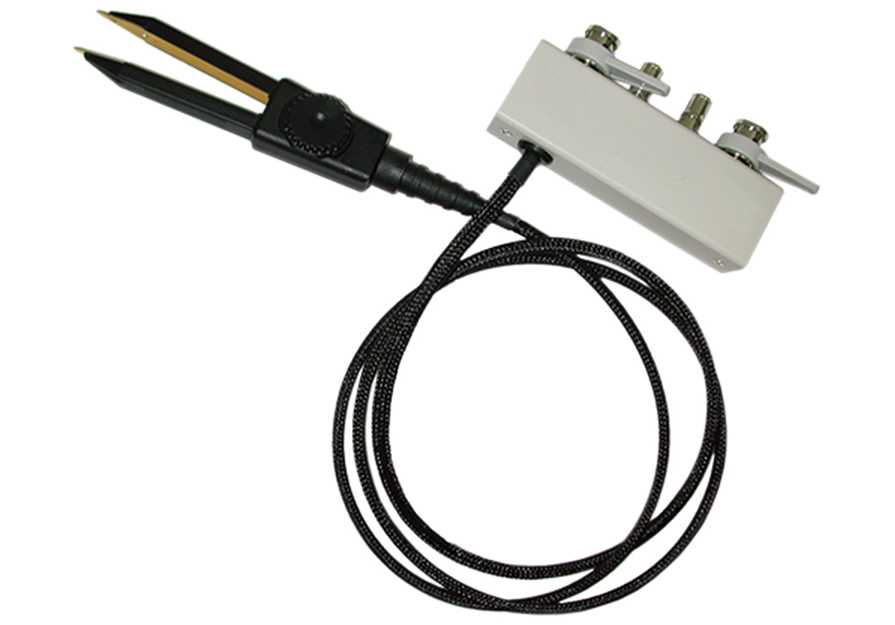

F423904 SMD Tweezers Test Leads
F423904 SMD Tweezers Test Leads
  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：2-Terminal
  • Cable Length(approx.)：1.5m (RG178)
  • Weight (approx.)： 131g
  • Applicable Models： 6363-6367
  • Frequency：DC to 1 MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
  • DUT Size：≤ 12mm
Inquiry Compare

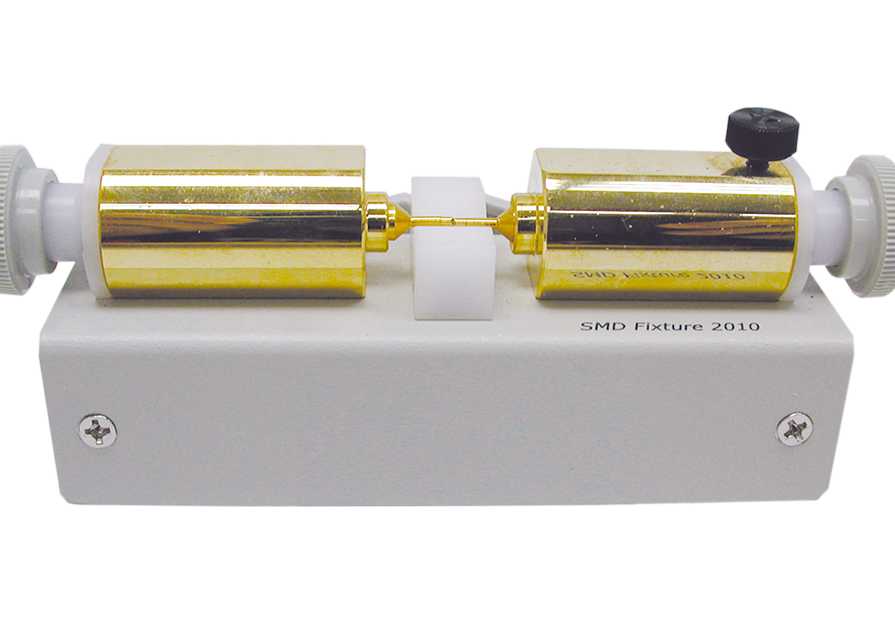

F423905 SMD Test Fixture
F423905 SMD Test Fixture
  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：2-Terminal
  • Dimensions (approx.)：118x48x52mm (W/H/D)
  • Weight (approx.)： 235g
  • Applicable Models： 6363~6367、6632、6630
  • Frequency：DC to 10 MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
  • DUT Size：Max.10mm
Inquiry Compare

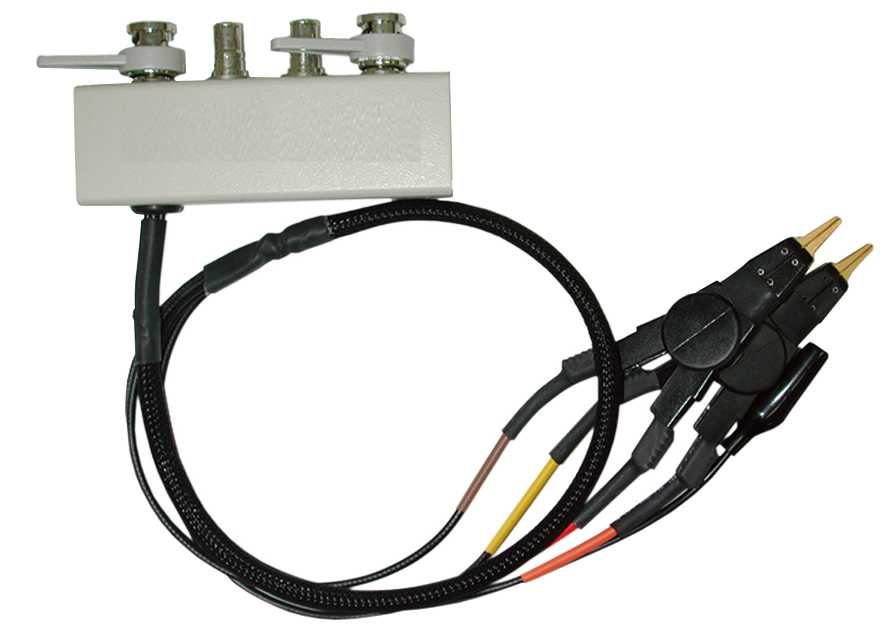

F423906A Kelvin Clip Leads
F423906A Kelvin Clip Leads
  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：4-Terminal
  • Cable Length(approx.)：100cm (RG174)
  • Weight (approx.)： 178g
  • Applicable Models： 6363~6367、6632、6630
  • Frequency：DC to 1 MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
  • DUT Size：Max.6mm
Inquiry Compare
F423906B Kelvin Clip Leads
F423906B Kelvin Clip Leads
  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：4-Terminal
  • Cable Length(approx.)：50cm (RG174)
  • Weight (approx.)： 178g
  • Applicable Models： 6363~6367、6632、6630
  • Frequency：DC to 1 MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
  • DUT Size：Max.6mm
Inquiry Compare
F423503 DIP Test Fixture
F423503 DIP Test Fixture
  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：4-Terminal
  • Dimensions (approx.)：105x25x68mm (W/H/D)
  • Weight (approx.)： 152g
  • Applicable Models： 6363~6367、6632、6630
  • Frequency：DC to 10 MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
  • DUT Size：Max.63mm、Min.3mm
Inquiry Compare

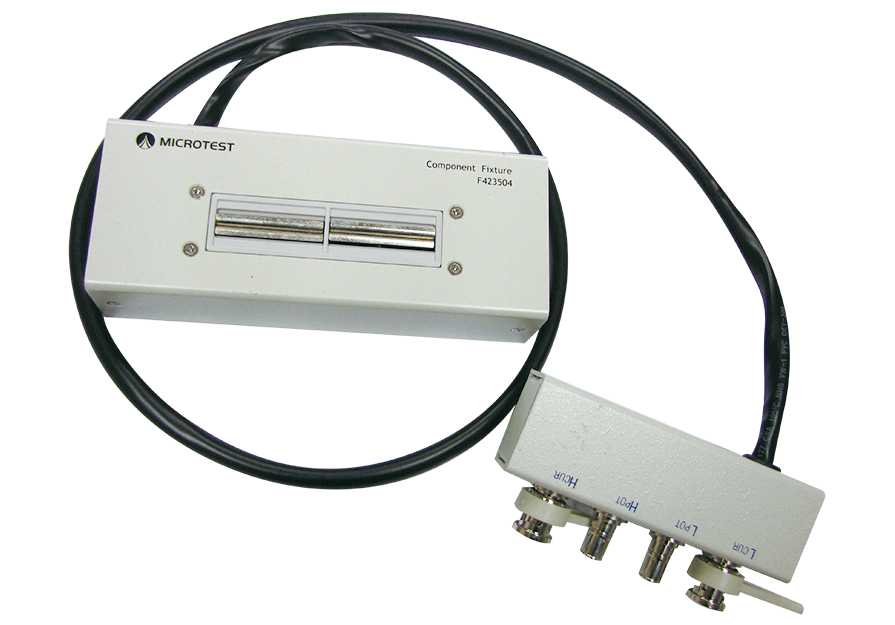

F423504 DIP Test Fixture
F423504 DIP Test Fixture
  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：4-Terminal
  • Cable Length(approx.)：1.2m (RG174)
  • Weight (approx.)： 905g
  • Applicable Models： 6363~6367、6632、6630
  • Frequency：DC to 1MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
  • DUT Size：Max.64mm
Inquiry Compare

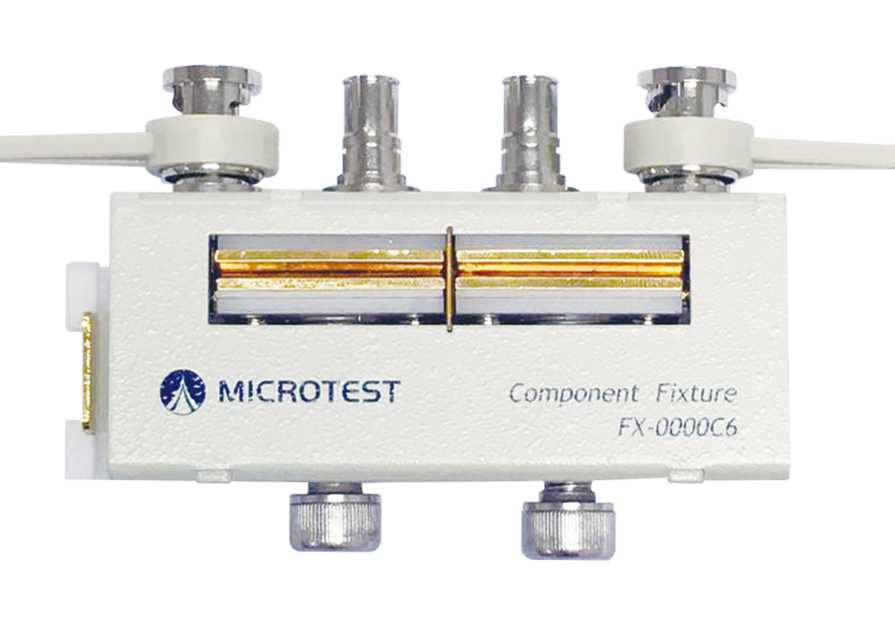

FX-0000C6 DIP Test Fixture
FX-0000C6 DIP Test Fixture
  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：4-Terminal
  • Dimensions (approx.)：98x25x65mm (W/H/D)
  • Weight (approx.)： 246g
  • Applicable Models： 6363~6367、6632、6630
  • Frequency：DC to 30 MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
  • DUT Size：Max.4mm
Inquiry Compare
FX-000C19 DIP Test Fixture
FX-000C19 DIP Test Fixture
  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：4-Terminal
  • Dimensions (approx.)：96x34x49mm (W/H/D)
  • Weight (approx.)： 170g
  • Applicable Models： 6363~6367、6632、6630
  • Frequency：DC to 50 MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
  • DUT Size：Max.4mm
Inquiry Compare
