6621 Series provides a wide frequency range from 10 Hz to 30 MHz for impedance testing of components and materials. Its compact size (W300 x H89.1 x D362.8 mm) allows flexible installation in SMT and automated test systems. With less than 3 ms high-speed stable measurement, it is ideal for inductor taping machines.

6630 Series offers high-frequency, high-accuracy measurement at 1M/3M/5M/10M/20M/30M/50 MHz. Built-in dielectric constant and permeability test functions. With less than 3 ms stable test speed, it's the best LCR Meter for automated inductor testing.

6360 Series provides accurate basic measurements at 20k/100k/200k/500k/1 MHz. It displays up to 4 parameters per screen with a simple, user-friendly interface—ideal for QA and incoming inspection.
Benchtop LCR Meter
All Products
Impedance Analyzer Benchtop LCR Meter DC Bias Current Test System

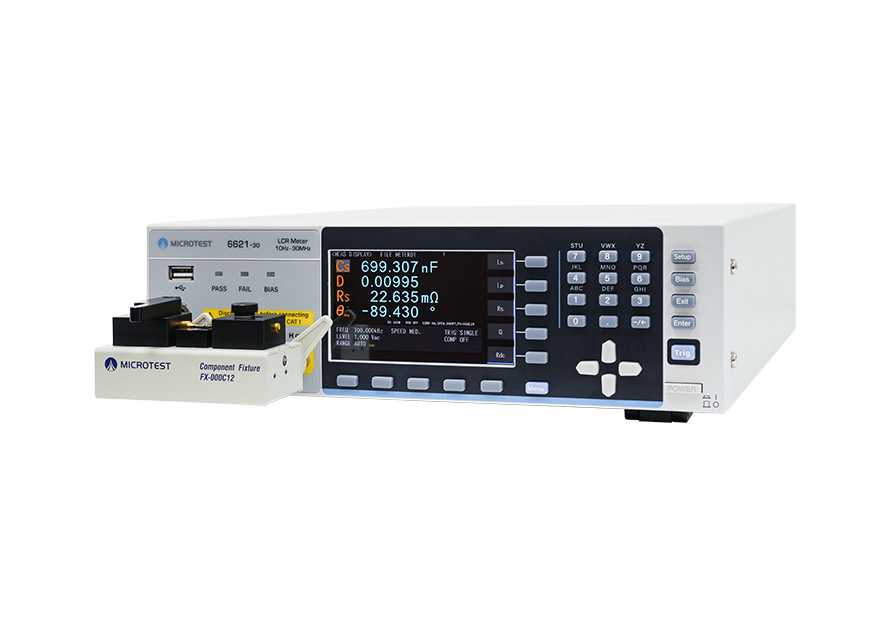

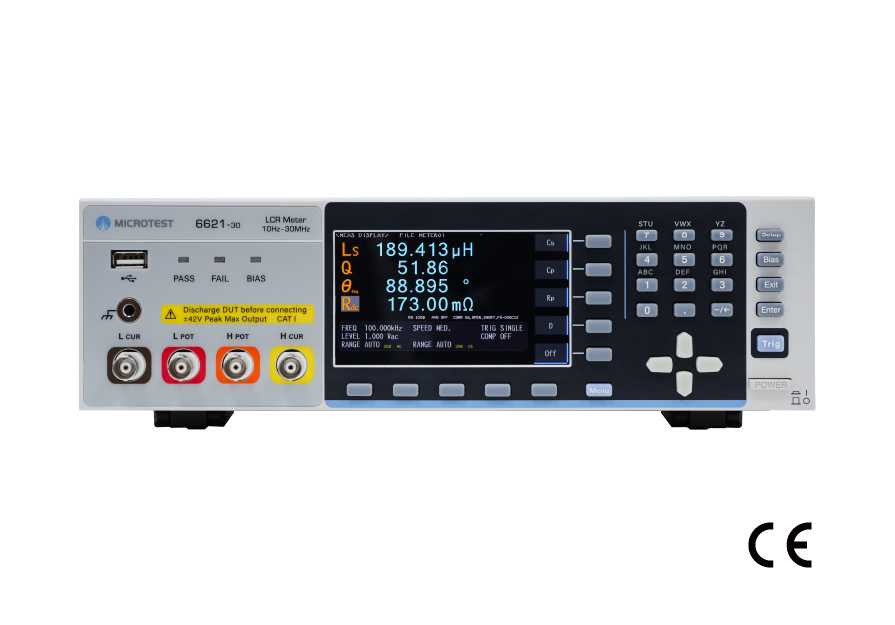

LCR Meter 6621 Series|1/3/5/10/20/30MHz
LCR Meter 6621 Series
1/3/5/10/20/30MHz
  • Frequency range: DC, 10Hz to 1/3/5/10/20/30MHz
  • Output Impedance 25Ω/100Ω, switchable
  • Ultra-high measuring speed <3ms
  • Basic accuracy up to ±0.05%
  • Automatic Level Control Function
  • Open circuit/Short circuit/Load Correction Function
  • Built-in DC Bias Voltage ±12V (Option OP-662102)
  • External DC Bias Current Source (Option 6621+ Series)
  • Support Meter Mode and List Mode
  • Display 4 Sets of Parameters at Once
  • Simultaneous AC/DC Measurement
  • Comparator Function and Handler BIN Classification Function
  • Support RS-232/ Handler/ LAN/ USB Host/ USB Device interfaces
  • Supports GPIB Interface (Option OP-662101)
  • Store Setup Files, Measurement Data, and Screenshots via USB
  • Supports PC Software
Inquiry Compare

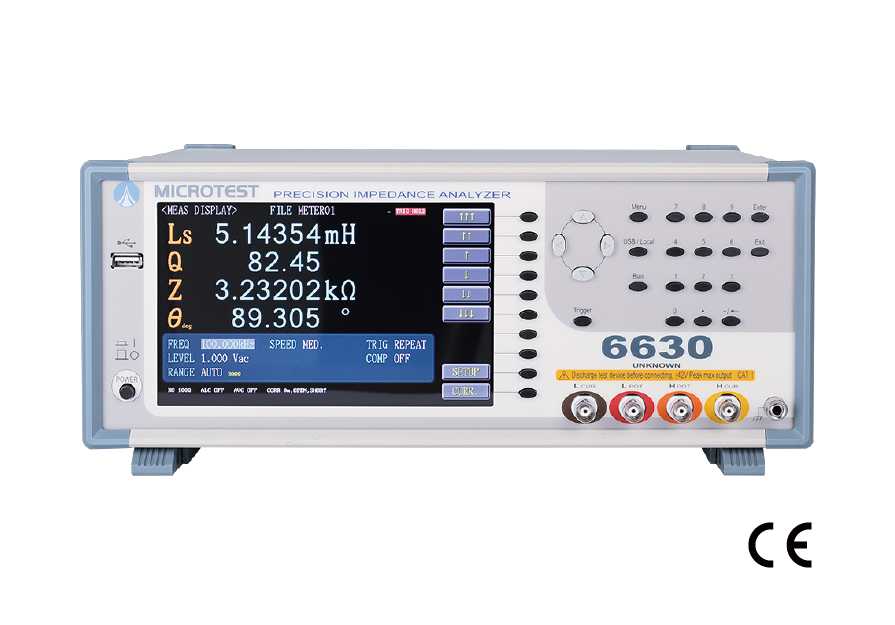

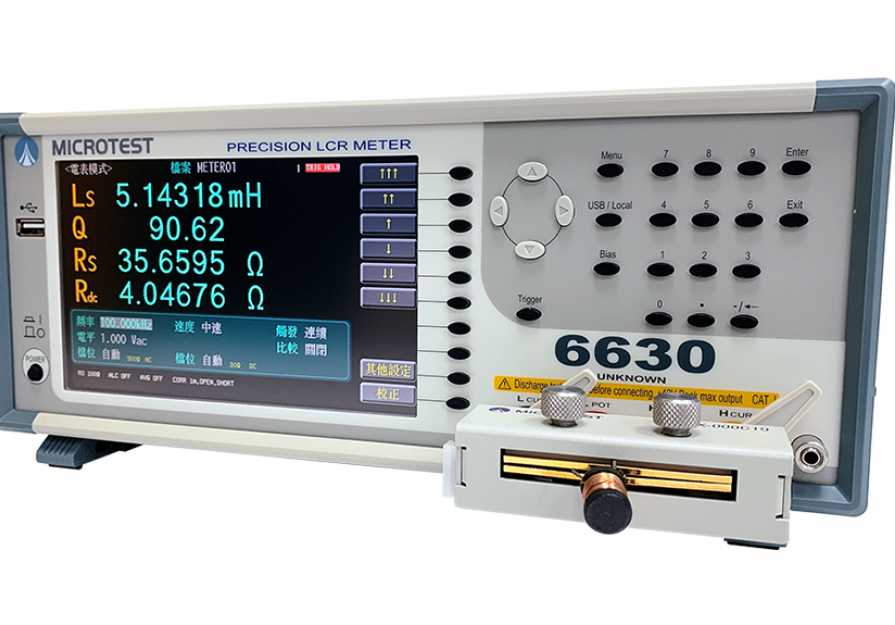

LCR Meter 6630 Series|1/3/5/10/20/30/50MHz
LCR Meter 6630 Series
1/3/5/10/20/30/50MHz
  • Frequency range: DC, 10Hz to 1/3/5/10/20/30MHz/50MHz
  • Basic accuracy up to ±0.05%
  • Automatic Level Control (ALC)
  • Output impedance 25Ω/100Ω, switchable
  • Support meter mode and list mode
  • Ultra-high measuring speed < 3ms
  • Open circuit/short circuit/load correction function
  • Comparator function
  • BIN classification function
  • Built-in the Permeability-μr
  • Built-in the Dielectric constant-εr
Inquiry Compare

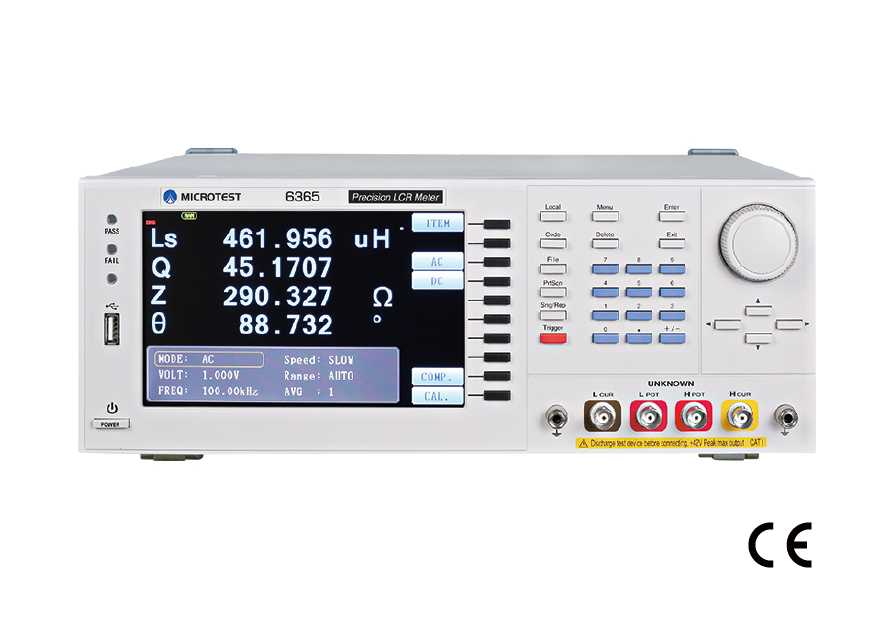

LCR Meter 6360 Series|6363/6364/6365/6366/6367
LCR Meter 6360 Series
6363/6364/6365/6366/6367
  • Test Frequency 10Hz-1MHz
  • Output Impedance 100Ω
  • Open Circuit/Short Circuit
  • Meter Mode
  • List Mode
  • 7.0" TFT, 800×480 color screen
  • Four Parameters Displayed Simultaneously
  • Comparator/BIN
  • Basic Accuracy ±0.05%
  • Using  Graphical Analysis by PC Link
  • RS-232、Handler、LAN、USB Host
Inquiry Compare
LCR Meter 6365A/6367A |Electrochemical Applications
LCR Meter 6365A/6367A
Electrochemical Applications
  • Ultra Low Frequency 0.1Hz-200k/1MHz
  • Output Impedance 100Ω
  • Open Circuit/Short Circuit
  • Meter Mode
  • List Mode
  • 7.0" TFT, 800×480 color screen
  • Four Parameters Displayed Simultaneously
  • Comparator/BIN
  • Basic Accuracy ±0.05%
  • Using  Graphical Analysis by PC Link
  • RS-232、Handler、LAN、USB Host 、Handler、GPIB
