MICROTEST 6367 LCR Meter offers a frequency range of 10Hz to 1MHz. It can measure parameters such as |Z| (impedance), |Y| (admittance), θ (phase angle), X (reactance), R (series/parallel resistance), G (conductance), B (susceptance), L (inductance), D (dissipation factor), Q (quality factor), DCR (DC resistance), and C (capacitance). It supports communication interfaces such as RS-232, Handler, LAN, USB Host, and can store test results and data via USB. With the optional PC connection software, it also enables sweep analysis capabilities. MICROTEST 6367 is an excellent choice for basic impedance measurements of electronic components.
Selection
| Model | 6360 Series | ||||
| Selection | 6363 | 6364 | 6365 | 6366 | 6367 |
|
Frequency Range |
10Hz- 20kHz |
10Hz- 100kHz |
10Hz- 200kHz |
10Hz- 500kHz |
10Hz- 1MHz |
SPEC
| Frequency Setting | Continuity | |
| Frequency Output Accuracy | ±0.01% | |
| Frequency Resolution | 5 Digits | |
| Basic Accuracy | ±0.05% | |
| AC Drive Level | Test Signal Voltage Level |
10mV - 2Vrms |
| Voltage Minimum Resolution | 1mV | |
| DC Drive Level | Test Signal Voltage Level | 10mV - 2V |
| Voltage Minimum Resolution | 1mV | |
| Output Impedance | 100Ω | |
| Measurement Mode | Meter mode, list mode | |
| Measurement Parameters |
|Z|、|Y|、θ、X、R、G、B、L、D、Q、DCR、C |
|
| Test Time | AC / DC test speed Max. 8mS | |
Measurement Parameters
| Parameters | Range |
| |Z| | 0.001mΩ - 99.999MΩ |
| R, X | 0.001mΩ - 99.999MΩ |
| |Y| | 0.1nS - 99.999S |
| G, B | 0.1nS - 99.999S |
| θ | ±0.001 ~ ±180.000deg |
| Cs, Cp | 0.01pF - 9.9999F |
| Ls, Lp | 0.1nH - 99.999KH |
| D | 0.00001 - 9.9999 |
| Q | 0.1 - 9999.9 |
| Δ | -9999% - 9999% |
| Rdc | 0.001mΩ - 99.999MΩ |
SYSTEM
| Measurement Circuit | Series/Parallel |
| Correction | Open Circuit/Short Circuit |
| Indicator | PASS/FAIL |
| Test Range | Automatic/Lock |
| BIN | ● |
| List Mode | 8 sets |
| Bulit-in Storge | 128 sets |
| USB Host Storge | LCR setting documents, list mode setting document |
| Trigger Test | Auto, manual, RS-232, Handler |
| Power Supply | Voltage:98-132Vac or 195-264Vac (Switchable) |
| Frequency:47-63Hz | |
| Power consumption | 30VA |
| Environment | Temperature:10℃-40℃ |
| Humidity:20-90%RH | |
| Dimension | 358x148x343 mm (W*H*D) |
| Weight | 3 Kg |
| Interface | RS-232、Handler、LAN、USB Host |
| Display | Color Screen, 7" TFT (800*480) |
Starting July 1, 2025, the 6630 and 6360 series will no longer include GPIB as a standard interface.
Please consider using LAN, USB, or RS-232 for control. We appreciate your understanding.
Connect 636x series RS-232 or Handler to computer and using sweeping analysis.
Multi-step function up to 8 sets.
Test Frequency 10Hz- 1MHz, the key parameters for inductance are Ls/Q/θ/Rs.
7.0”TFT, 800×480 color screen, and four parameters can displayed simultaneously.
USB Host can storage testing screen and data.
Standard Accessories
| Power Cord | |
| Kelvin Clip Leads (F423906A) |
|
Optional Accessories
| PC Link Software | |
| GPIB Interface (OP-636001) | |
| DIP Test Fixture ( FX-0000C6) | ![]() |
| DIP Test Fixture ( FX-0000C4 ) | ![]() |
| F423906B | |
| SMD Tweezer Test Leads (FX-000C11) | ![]() |
| SMD Test Fixture (FX-000C12) | ![]() |
|
Material Testing Fixture (FX-0000C9) |
![]() |
|
BNC Test Leads (50cm)(100cm)(200cm) (F663001A/B/C) |
|
|

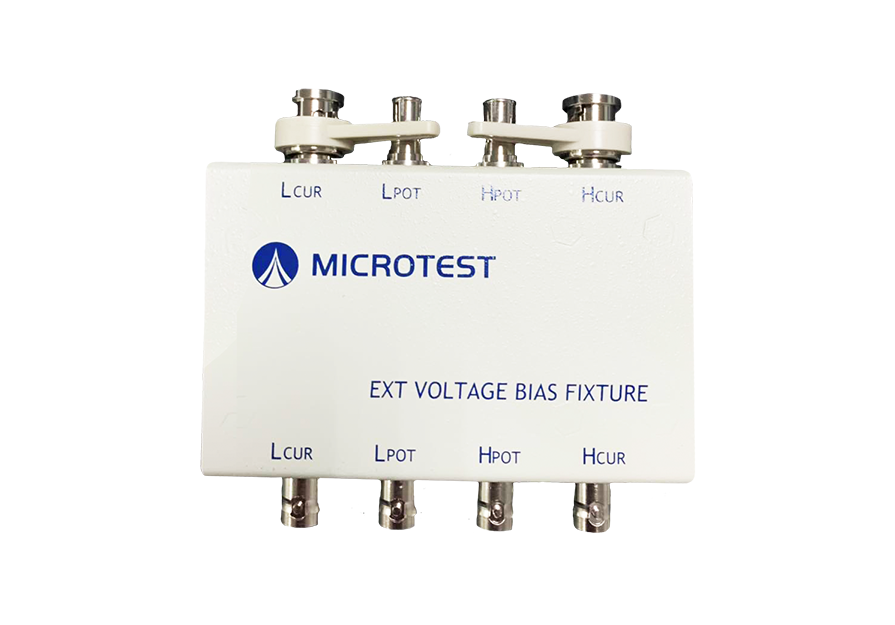

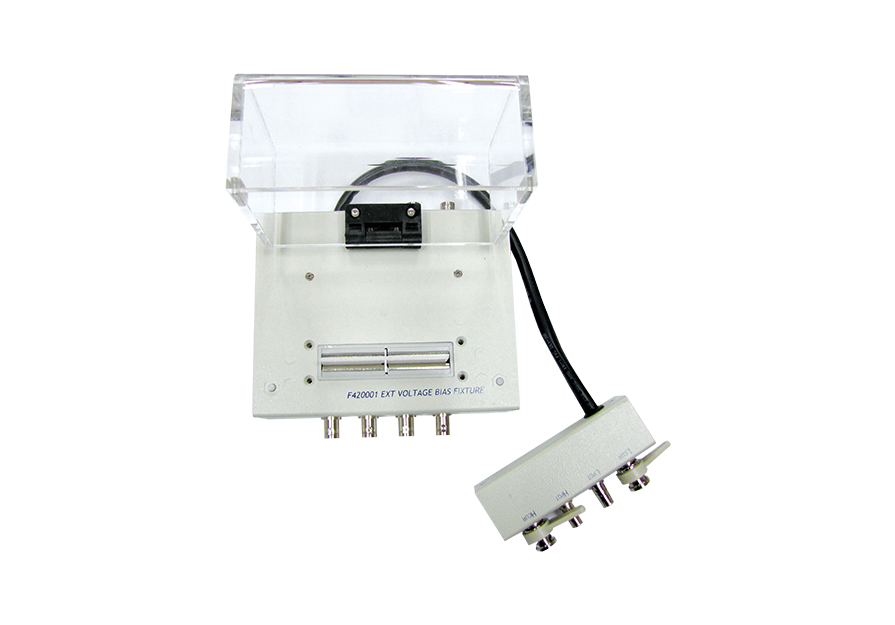

External Voltage Bias (±200V/1MHz) (F420001) |
![]() |
|
External Voltage Bias (±40V/1MHz) (F420003) |
![]() |
|

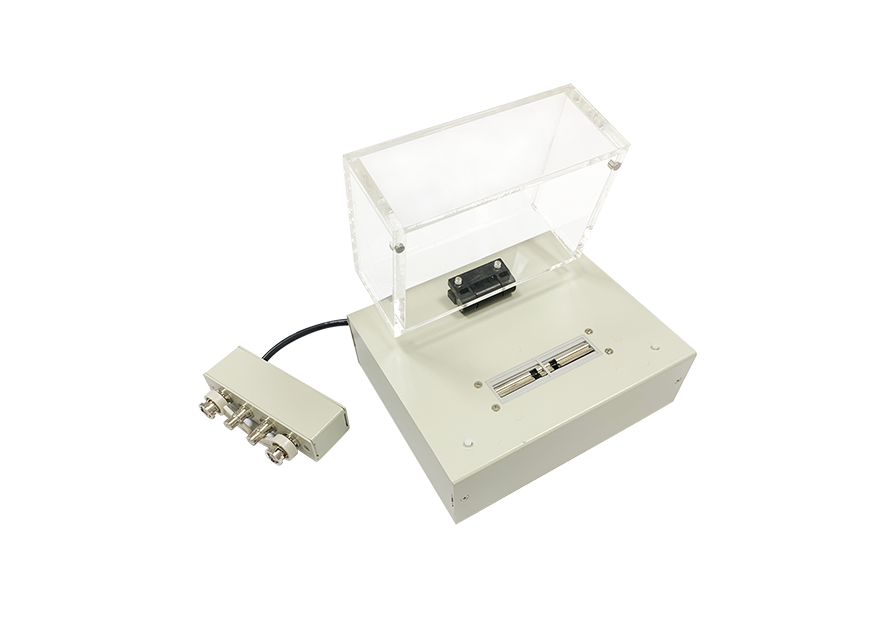

External Voltage Bias (±2000V/1MHz) (F420006) |
![]() |
|

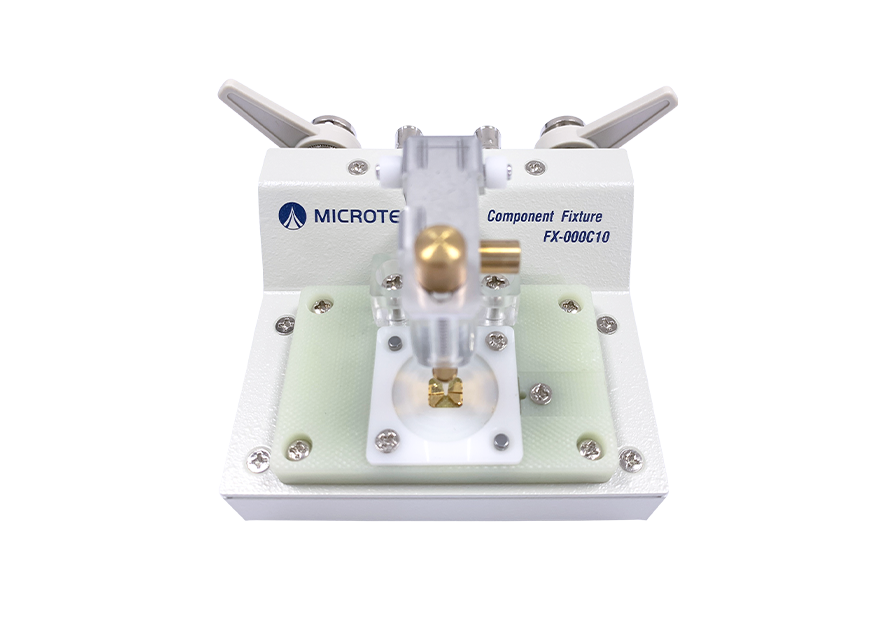

Bottom Electrode SMD Test Fixture (FX-000C10) |
![]() |
|

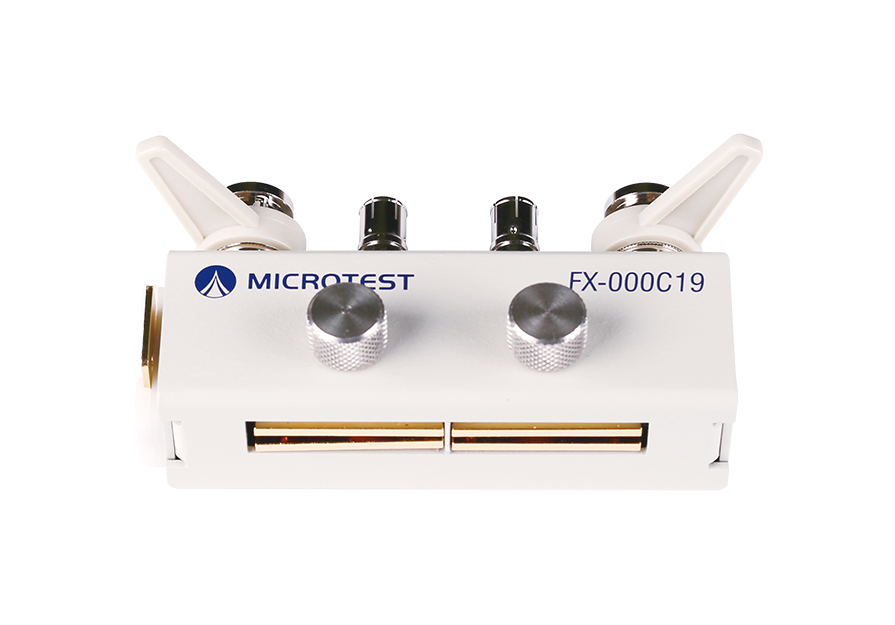

DIP Test Fixture (FX-000C19) |
![]() |
|
