Transformer Tester/System

MICROTEST Transformer Tester comprehensively measures vital transformer parameters, including inductance, leakage inductance, DC resistance, AC resistance, quality factor, capacitance, turns ratio, and detects pin-to-pin short circuits. Measurement frequencies supported: 200kHz, 500kHz, 1MHz.

5260 series (20 test channels) and 5460 series (48 test channels). Customized pneumatic fixtures are available for different transformer pin configurations. It also supports PC connectivity.

Transformer Test System integrates low-voltage electrical testing and safety compliance testing, offered as a 2-in-1 (low-voltage + Hi pot test) and 3-in-1 (low-voltage + Hi pot test + Impulse Winding test) solution. It uses 21 channel scanning test fixtures and can consolidate multiple stations into one, saving labor.
Transformer Tester/System
All Products
Transformer Tester Transformer Testing Systems
Transformer Tester 5260 Series|5265/5266/5267
Transformer Tester 5260 Series
5265/5266/5267
  •  Test Frequency: 10Hz-200kHz/500kHz/1MHz
  • 20 Channels
  • Built-in Meter Mode
  • Simultaneously display four parameters
  • Basic accuracy up to ±0.1%
  • Open circuit/short circuit function
  • RS-232、Handler、LAN、USB Host 、Handler
  • Pneumatic fixture F5620 built-in 100mA DC Bias
  • USB Host storages can storage setting files, data and capture the screen
Inquiry Compare
Transformer Tester 5460 Series|5465/5466/5467
Transformer Tester 5460 Series
5465/5466/5467
  •  Test Frequency: 10Hz-200kHz/500kHz/1MHz
  • 48 Channels
  • Built-in Meter Mode
  • Simultaneously display four parameters
  • Basic accuracy up to ±0.1%
  • Open circuit/short circuit function
  • RS-232、Handler、LAN、USB Host 、Handler
  • Pneumatic fixture F5620 built-in 100mA DC Bias
  • USB Host storages can storage setting files, data and capture the screen
Inquiry Compare

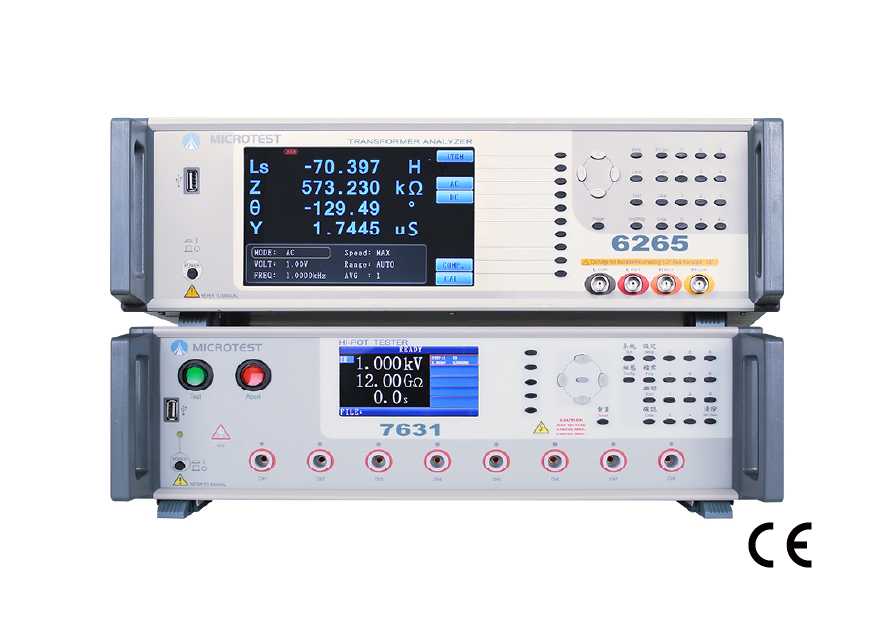

2-in-1 Transformer Testing System|Low Voltage+Safety
2-in-1 Transformer Testing System
Low Voltage+Safety
  • Low Voltage Electrical Test
  • Hi pot/ Insulation Test
  • 20 Channels
  • Test Frequency (200k/500k/1MHz)
  • AC Voltage Output 5000V
  • DC Voltage Output 6000V
  • Insulation Resistance 12000MΩ
Inquiry Compare

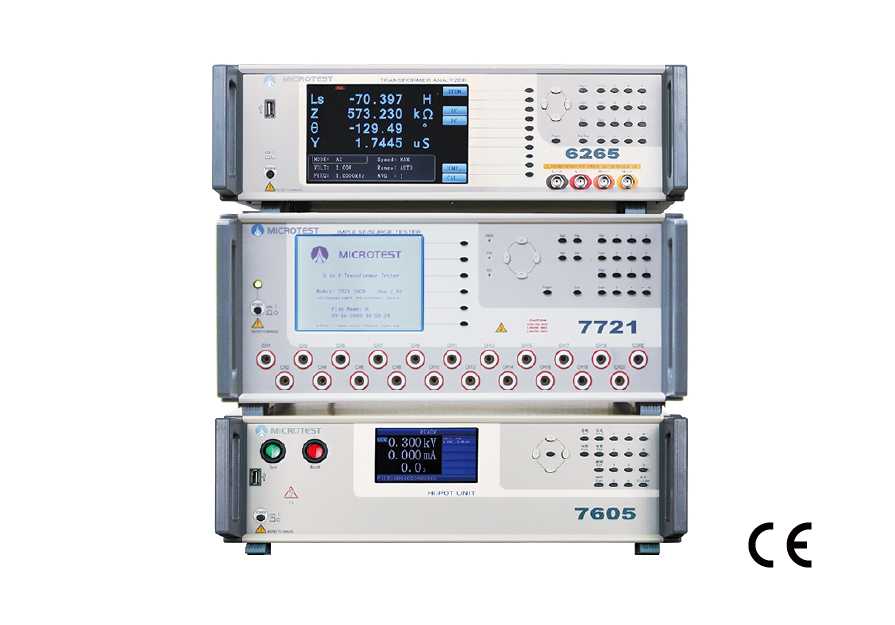

3-in-1 Transformer Testing System|Low Voltage+Safety+Impulse
3-in-1 Transformer Testing System
Low Voltage+Safety+Impulse
  • Low Voltage Electrical Test
  • Hi pot/ Insulation Test
  • Impulse Test (Layer Short Circuit)
  • 20 Channels
  • Test Frequency (200k/500k/1MHz)
  • AC Voltage Output 5000V
  • DC Voltage Output 6000V
  • Insulation Resistance 12000MΩ
Inquiry Compare

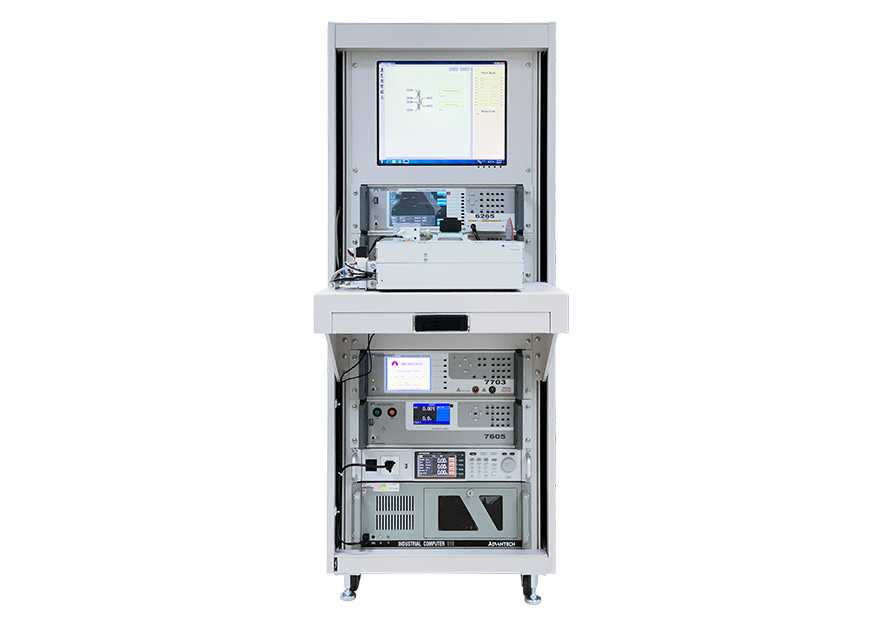

Automatic Transformer Test System| 9560 (3-in1+AC Source)
Automatic Transformer Test System
9560 (3-in1+AC Source)
  • Low Voltage Electrical Test
  • Hi pot/ Insulation Test
  • Impulse Test (Layer Short Circuit)
  • 21 Channels
  • Test Frequency (200k/500k/1MHz)
  • AC Voltage Output 5000V
  • DC Voltage Output 6000V
  • Insulation Resistance 12000MΩ
  • Excitation Current /Open- circuit voltage /The no-load power
Inquiry Compare
