MICROTEST 6365A/6367A LCR Meter provides a frequency range of 0.1Hz to 200k/1MHz and is suitable for applications such as electrochemical impedance or battery material testing. With an extremely low starting frequency of 0.1Hz, it can accurately measure parameters such as |Z| (impedance), |Y| (admittance), θ (phase angle), X (reactance), R (series/parallel resistance), G (conductance), B (susceptance), L (inductance), D (dissipation factor), Q (quality factor), DCR (DC resistance), and C (capacitance). It supports communication interfaces such as RS-232, Handler, LAN, USB Host, GPIB, and allows storage of test screens and data via USB. With the optional PC connection software, it also enables sweep analysis capabilities.
Selection
| Model | 6365A / 6367A | |||||
| Frequency |
0.1Hz-200kHz (6365A) 0.1Hz-1MHz (6367A) |
|||||
SPEC
| Frequency Setting | Continuity | |
| Frequency Output Accuracy | ±0.01% | |
| Frequency Resolution | 5 Digits | |
| Basic Accuracy | ±0.05% | |
| AC Drive Level | Test Signal Voltage Level |
10mV - 2Vrms |
| Voltage Minimum Resolution | 1mV | |
| DC Drive Level | Test Signal Voltage Level | 10mV - 2V |
| Voltage Minimum Resolution | 1mV | |
| Output Impedance | 100Ω | |
| Measurement Mode | Meter mode, list mode | |
| Measurement Parameters |
|Z|、|Y|、θ、X、R、G、B、L、D、Q、DCR、C |
|
| Test Time | AC / DC test speed Max. 8mS | |
Measurement Parameters
| Parameters | Range |
| |Z| | 0.001mΩ - 99.999MΩ |
| R, X | 0.001mΩ - 99.999MΩ |
| |Y| | 0.1nS - 99.999S |
| G, B | 0.1nS - 99.999S |
| θ | ±0.001 ~ ±180.000deg |
| Cs, Cp | 0.01pF - 9.9999F |
| Ls, Lp | 0.1nH - 99.999KH |
| D | 0.00001 - 9.9999 |
| Q | 0.1 - 9999.9 |
| Δ | -9999% - 9999% |
| Rdc | 0.001mΩ - 99.999MΩ |
SYSTEM
| Measurement Circuit | Series/Parallel |
| Correction | Open Circuit/Short Circuit |
| Indicator | PASS/FAIL |
| Test Range | Automatic/Lock |
| BIN | ● |
| List Mode | 8 sets |
| Bulit-in Storge | 128 sets |
| USB Host Storge | LCR setting documents, list mode setting document |
| Trigger Test | Auto, manual, RS-232, GPIB, Handler |
| Power Supply | Voltage：98-132Vac or 195-264Vac (Switchable) |
| Frequency：47-63Hz | |
| Power consumption | 30VA |
| Environment | Temperature：10℃-40℃ |
| Humidity：20-90%RH | |
| Dimension | 358x148x343 mm (W*H*D) |
| Weight | 3 Kg |

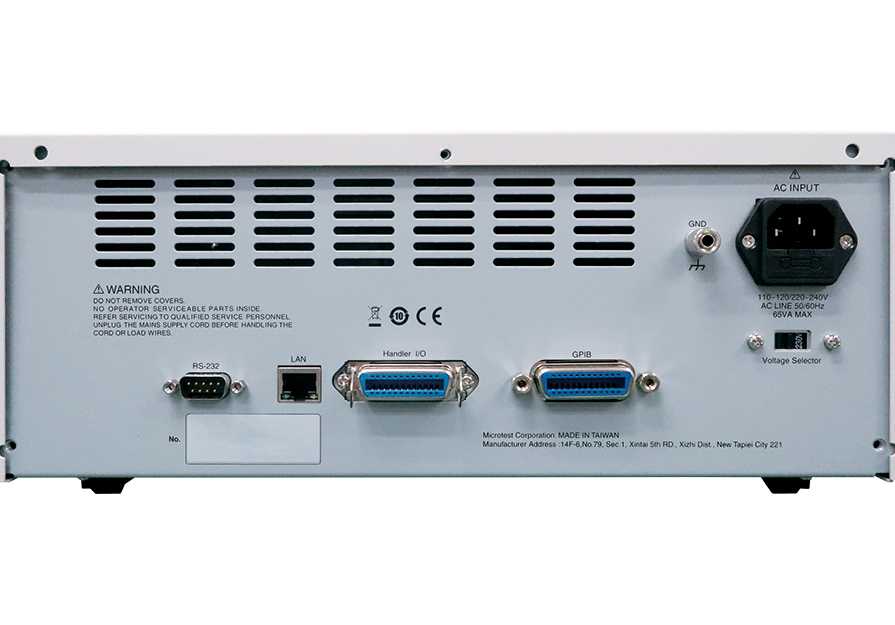

| Interface | RS-232、Handler、LAN、USB Host |
| Display | Color Screen, 7" TFT (800*480) |
Connect 636x series RS-232, GPIB or Handler to computer and using sweeping analysis.
Multi-step function up to 8 sets.
6365A test frequency 0.1Hz- 200kHz.
7.0”TFT, 800×480 color screen, and four parameters can displayed simultaneously.
USB Host can storage testing screen and data.
Standard Accessories
| Power Cord | |
| Kelvin Clip Leads (F423906A) |  |

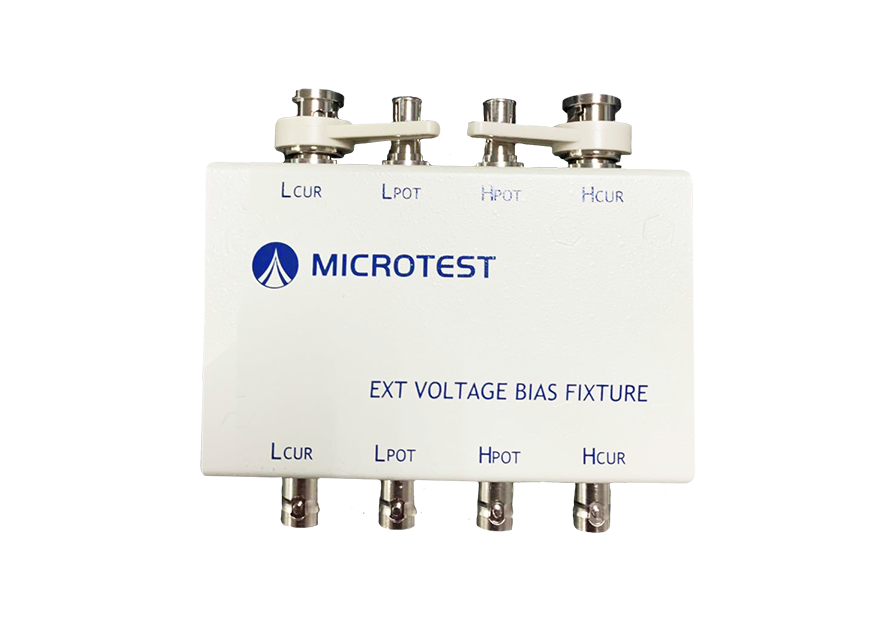

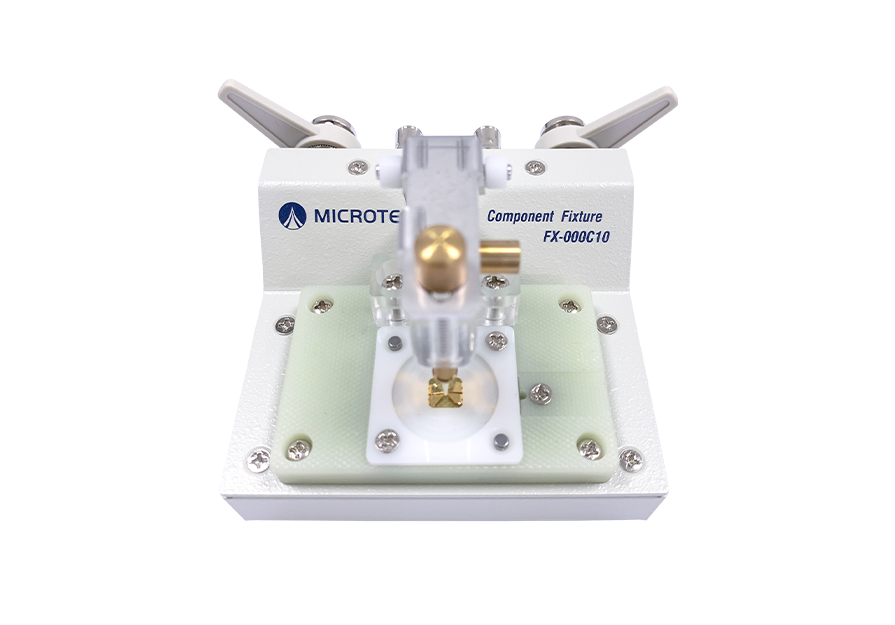

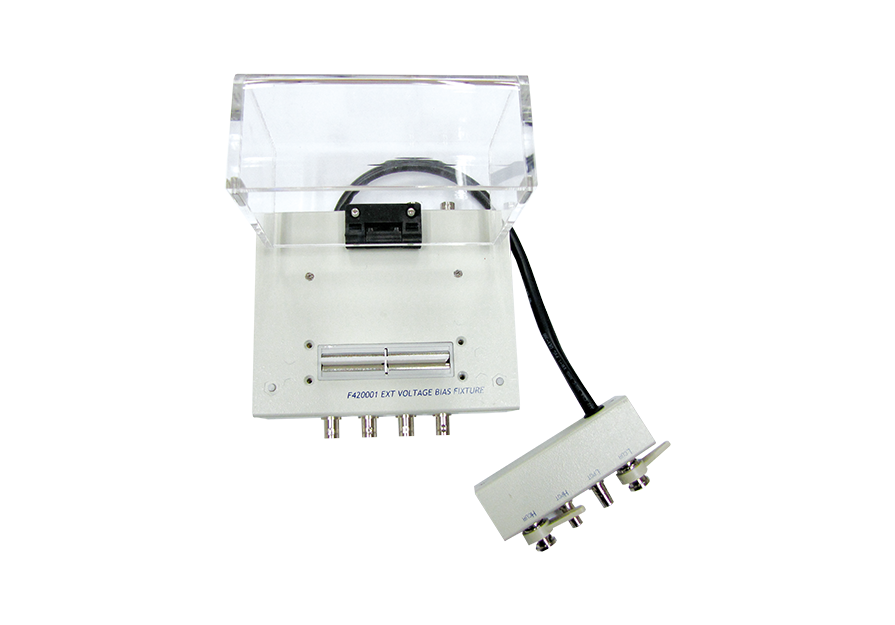

Optional Accessories
| PC Link Software | |
| DIP Test Fixture (F423503) |  |
| DIP Test Fixture (F423504) |  |
| SMD Test Fixture (F423905) |  |
| SMD Tweezer Test Leads (FX-000C11) |  |
| SMD Test Fixture (FX-000C12) |  |
|

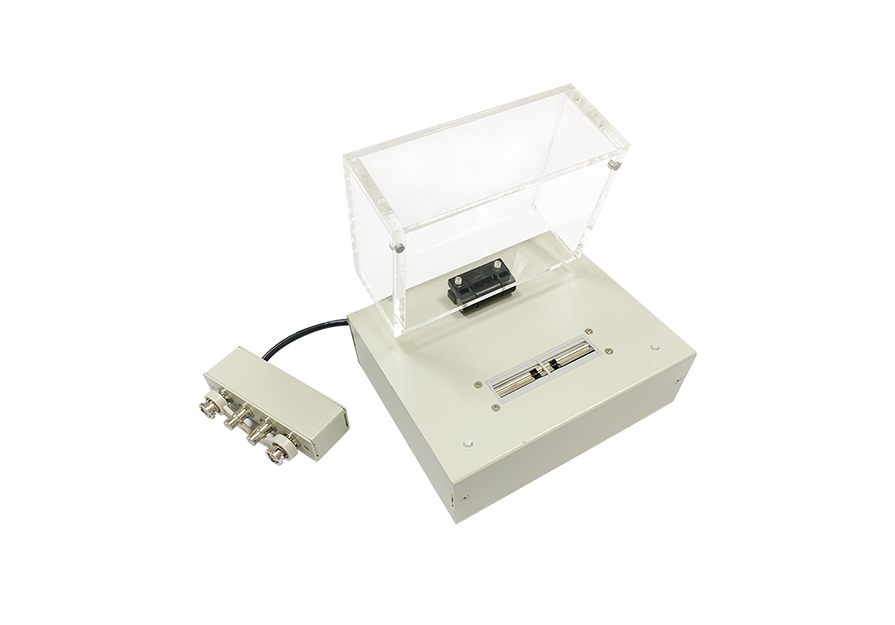

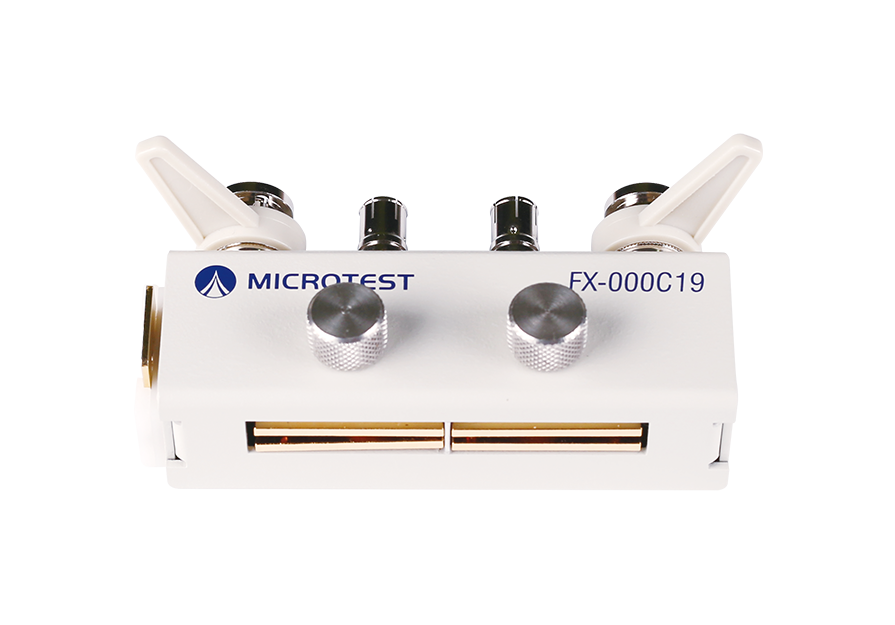

Material Testing Fixture (FX-0000C9) |
 |
