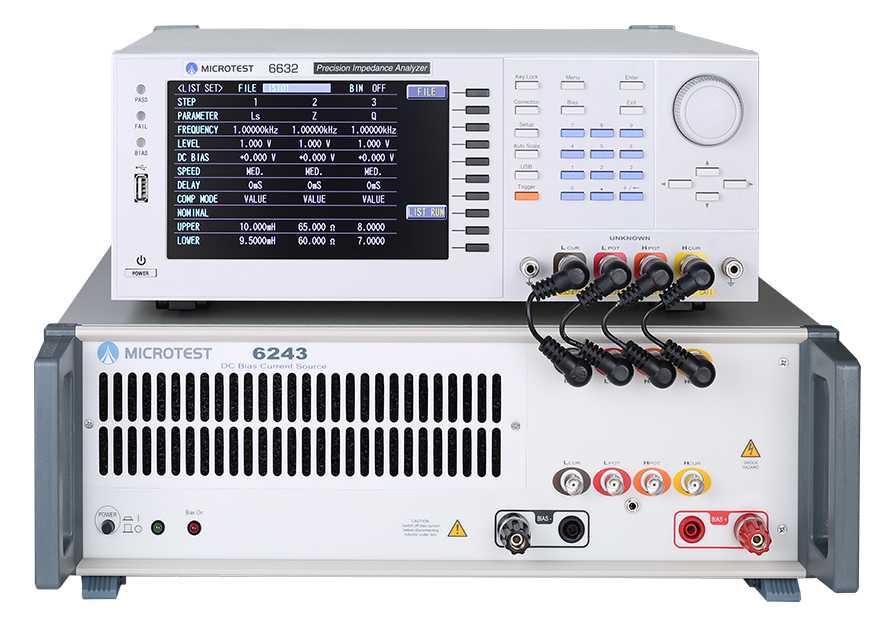

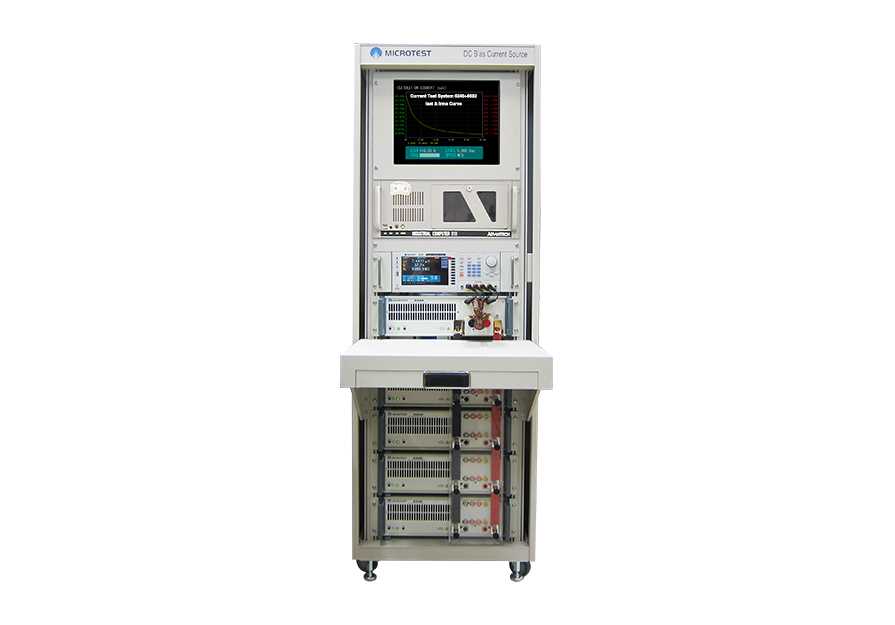

6243+6632 DC Bias Current Test System

6243+6632 DC Bias Current Test System
Features





  • Current and frequency graphic scanning analysis
  • Frequency response 100Hz-10MHz
  • DC Bias Current Max.320A (6243)
  • DCR Measurement function
  • Built-in the Permeability-μr
  • Long-term consecutive maximum power output
  • Direct Handler interfaces control through Impedance Analyzer
  • Support meter mode and list mode, sweep mode

Specifications

Selection

DC Bias Current Test System
Model 6243+6632
Frequency Response 100Hz-10MHz
DC Bias Current Max. 320A
Power consumption 640W Max.
Selection
 Model 6225+6632 6240+6632 6223+6632 6220+6632 6210+6632
Frequency Response 100Hz-30MHz 100Hz-3MHz 100Hz-10MHz 100Hz-3MHz 100Hz-3MHz
Output Current Max. 20A 320A 120A 120A 60A
Power consumption 320W 640W   320W  320W  320W
units of the DC Bias  1  8  6  6
Output Current (unit)  20A  40A  20A 20A   10A

SPEC

Model 6243+6632

 Accuracy (6632)

0.000A-1.000A 1%+5mA
1.001A-5.000A 2%
5.001A-20.000A 3%
DCR Test
Constant power output
Current switch
Graphic Scanning Analysis Frequency graphic scanning analysis
Magnetic saturation curve (Isat)
Rated current curve (Irms)





6632 Impedance Analyzer

Model 6632-1 6632-3 6632-5 6632-10 6632-20 6632-30 6632-50

Test

Frequency

10Hz-

1MHz

10Hz-

3MHz

10Hz-

5MHz

10Hz-

10MHz

10Hz-

20MHz

10Hz-

30MHz

10Hz-

50MHz

Equivalent

Circuit

Analysis

6632-1S 6632-3S 6632-5S 6632-10S 6632-20S 6632-30S 6632-50S



Model 6632
Frequency Range 10Hz-50MHz
Frequency Setting Continuity
Frequency Output Accuracy ±0.01%
Frequency Resolution 100mHz, 6-bit Frequency Input
Basic Accuracy ±0.08% (typical ±0.05%)
AC Drive Level Test Signal Voltage Level

              10mV - 2Vrms(100Ω)

              10mV - 1Vrms(25Ω)

Voltage Minimum Resolution 1mV
Accuracy

     ALC ON:6% * Voltage ±2mV

     ALC OFF:10% * Voltage ±2mV

Test Signal Current Level 200µA - 20mArms
Current Minimum Resolution 10µA
Accuracy

     ALC ON:6% * Current ± 20µA

     ALC OFF:10% * Current ± 20µA

DC Drive Level 1V (fixed)
Output Impedance 25Ω/100Ω (switchable)
DC Bias Voltage

Built-in ±12V

(100Hz-50MHz)

External Voltage Bias

(±12V/±40V/±2000V)

DC Bias Current

Option DC Bias Current Source

(20A/60A/120A/320A)

External Voltage Bias

(100mA/1A)

Measurement Mode Meter mode, list mode, sweep mode, and optional equivalent circuit analysis function (S model)
Measurement Parameters

|Z|、|Y|、θ、X、R、G、B、L、D、Q、DCR、C、 ESR、ε and μr

Test Time (Fastest) < 3mS

6632 Measurement Parameters

Parameters Range
|Z| 0.000 mΩ to 9999.99 MΩ
R, X ± 0.000 mΩ to 9999.99 MΩ
|Y| 0.00000 μS to 999.999 kS
G, B ± 0.00000 μS to 999.999 kS
θRAD ± 0.00000 to 3.14159
θDEG ± 0.000° to 180.000°
Cs, Cp ± 0.00000 pF to 9999.99 F
Ls, Lp ± 0.00 nH to 9999.99 kH
D 0.00000 to 9999.99
Q 0.00 to 9999.99
Δ ± 0.00% to 9999.99%
Rdc 0.00 mΩ to 99.9999 MΩ
εr' εr'' 0 to 100000
μr' μr'' 0 to 100000

System

   Measurement Circuit Series/Parallel
Correction Open Circuit/Short Circuit/Load correction
  Cable Compensation 0 / 0.5 / 1 /2 (m)
BIN ABS、ΔABS、Δ%、OFF
   Comparator 9
 List Mode 50 groups of Multi-steps setting (Each group contains up to 15 steps)
  Bulit-in Storge 100 sets LCR setting documents, 50 groups of list mode setting
USB Host Storge LCR setting documents, list mode setting document, BMP graphics, Sweep screen and test result data
  Trigger Test Auto, manual, RS-232, GPIB, Handler
   Power Supply Voltage:88-264Vac
Frequency:47-63Hz
  Power consumption 30VA
  Environment Temperature:10℃-40℃
Humidity:20-90%RH
   Dimension

356x145x644 mm (W*H*D)

/6243

336x147x340 mm (W*H*D)

/ 6632

  Weight 20 Kg (6243) 3.95 Kg (6632)
Display - Color Screen, 7" TFT (800*480)
Interface RS-232、Handler
