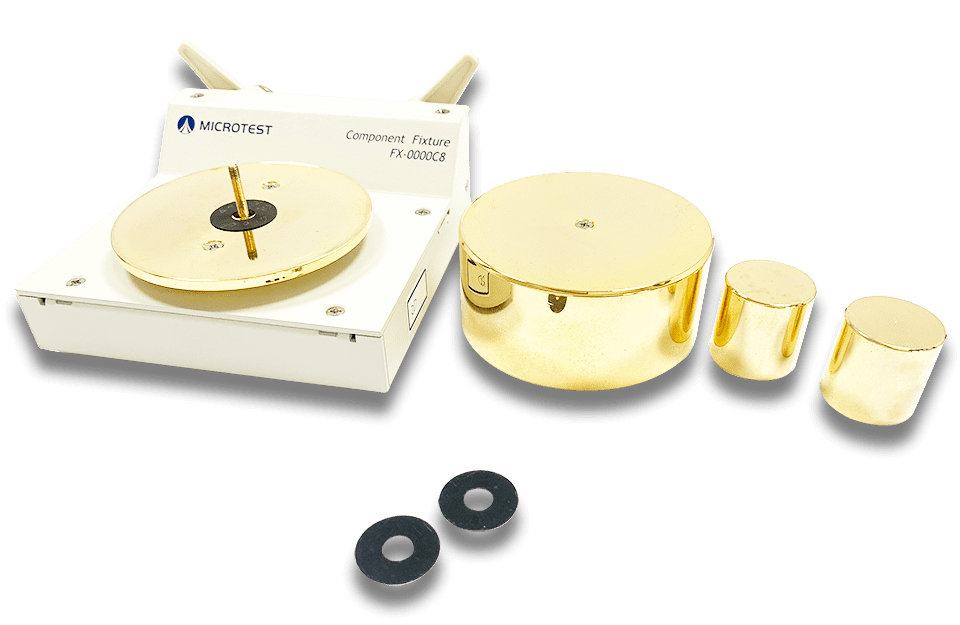

FX-0000C8 Magnetic Material Test Fixture

FX-0000C8 Magnetic Material Test Fixture
Features
Datasheet Inquiry





  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：4-Terminal
  • Dimensions (approx.)：105x125x65mm (W/H/D)
  • Weight (approx.)： 738g

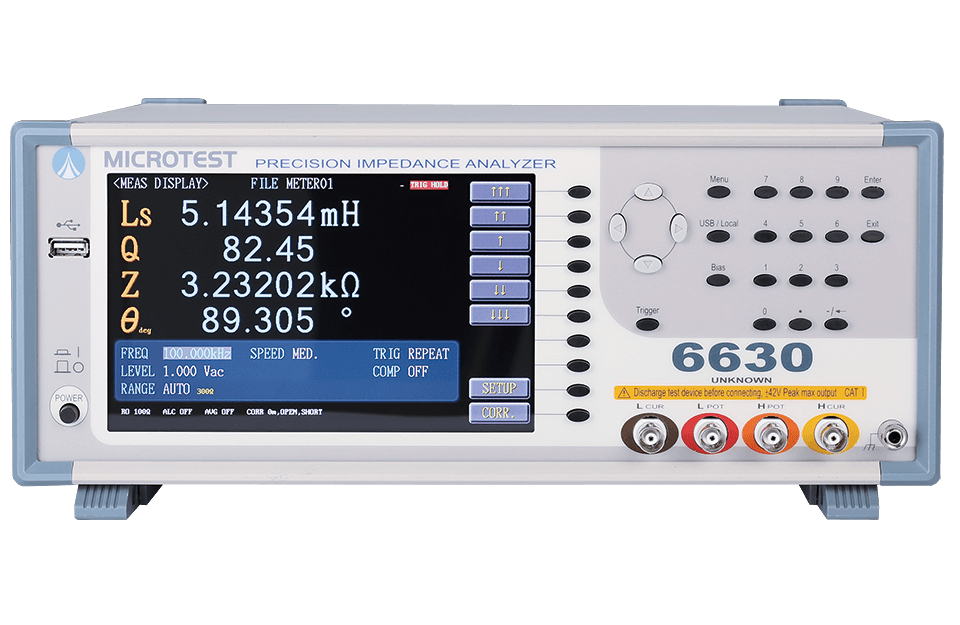

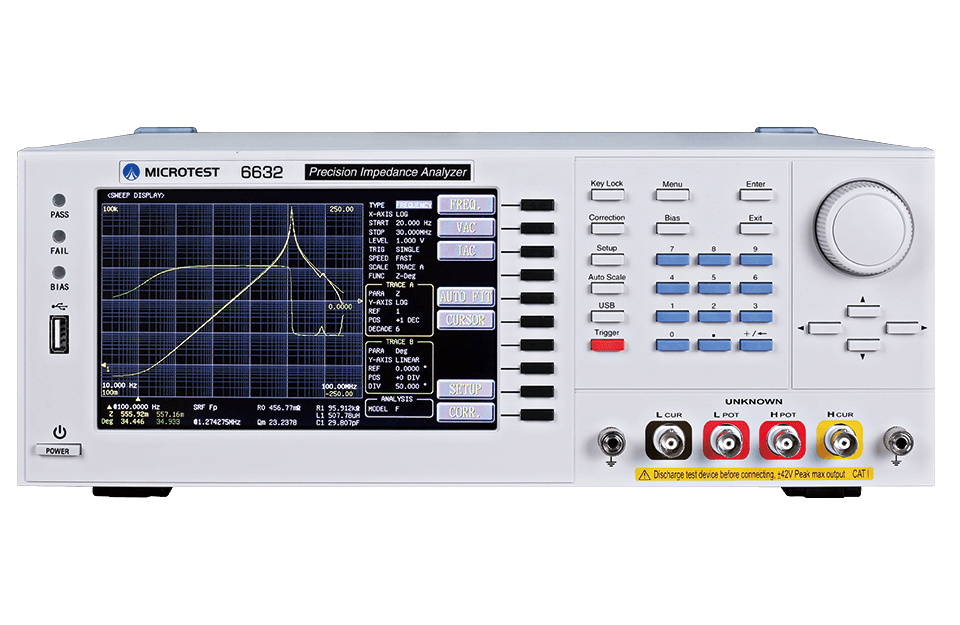

  • Applicable Models： 6632、6630
  • Frequency：≤30MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
Application
Accessories
Download
Video

Specifications

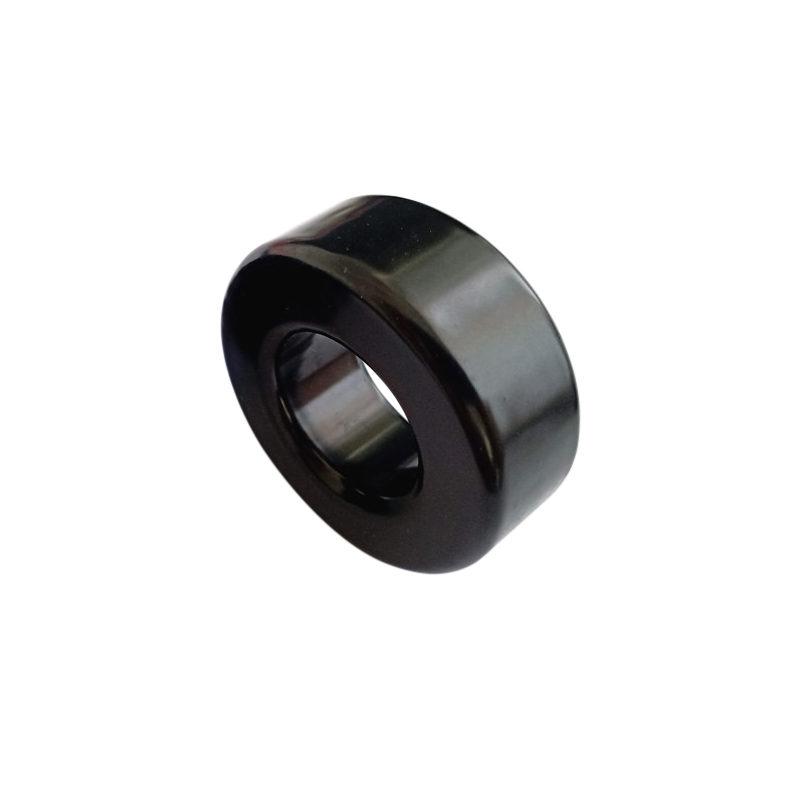

DUT Size

  • Type A
    OD 8, ID 3.1, H 3 mm
  • Type B
    OD 20.5, ID 4.8, H 11 mm
  • Type C
    OD 65.5, ID 7.1, H 28 mm



  •  Frequency
100kHz 1MHz 3MHz 5MHz 10MHz 20MHz 30MHz 50MHz
