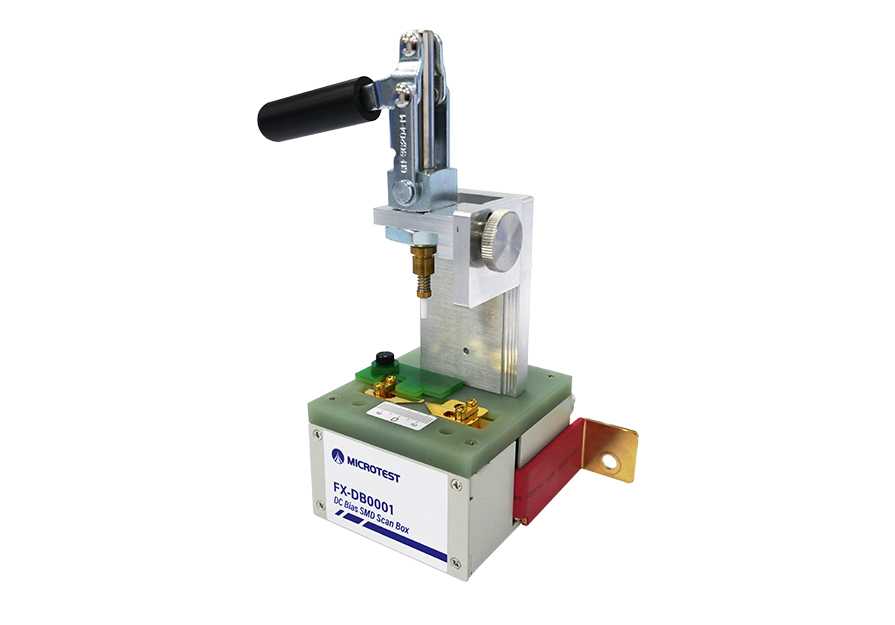

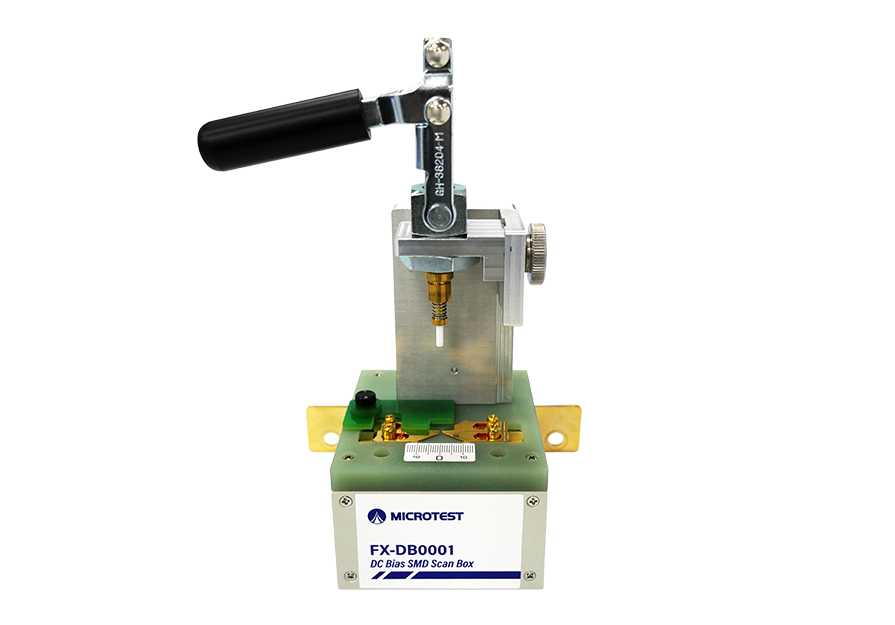

FX-DB0001 DC Bias SMD Fixture

FX-DB0001 DC Bias SMD Fixture
Features
Datasheet Inquiry

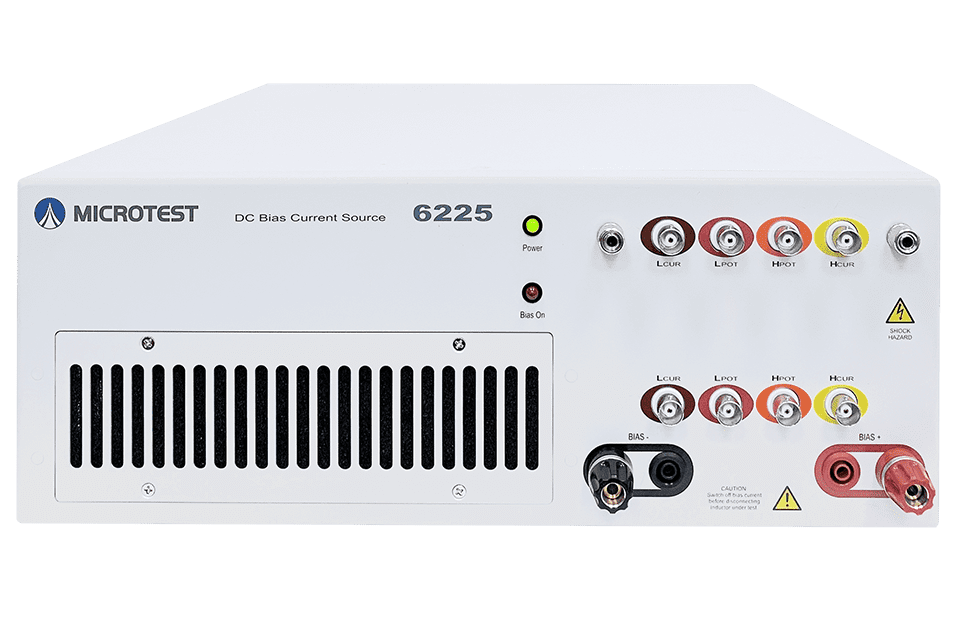

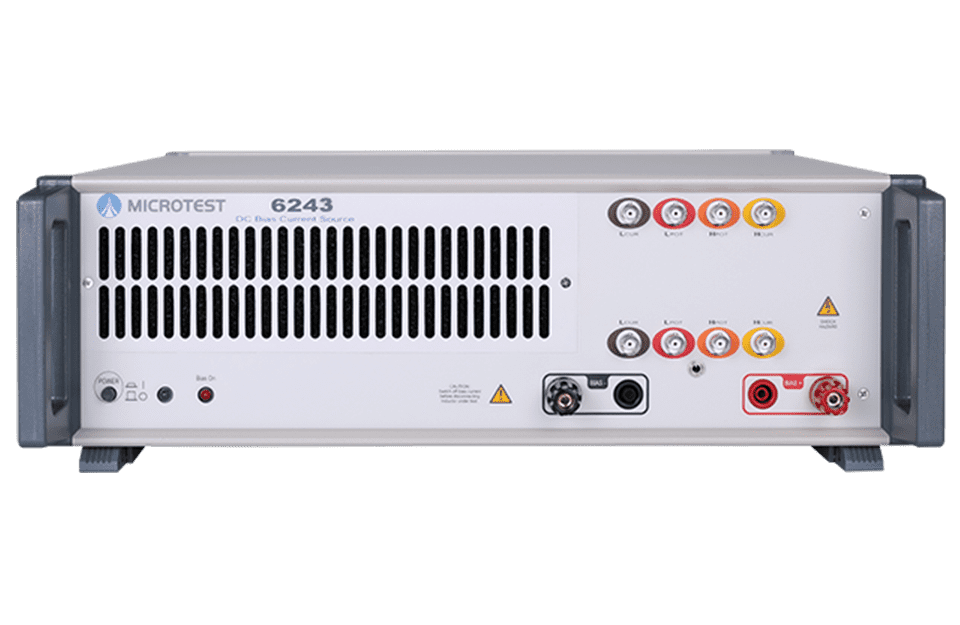

  • Applicable Models：6225/6243/6223/6240/6220/6210
  • Component Type: SMD (Surface Mount Device)

Specifications

FX-DB0001
 Frequency  100Hz~10MHz
 Max. Current

 120A

 Before Outputting Current
 ▲ Please assess the cross-sectional area of the DUT when setting the current
 Terminal Connector  4-Terminal Pair, BNC
 DUT Connection  4-Terminal

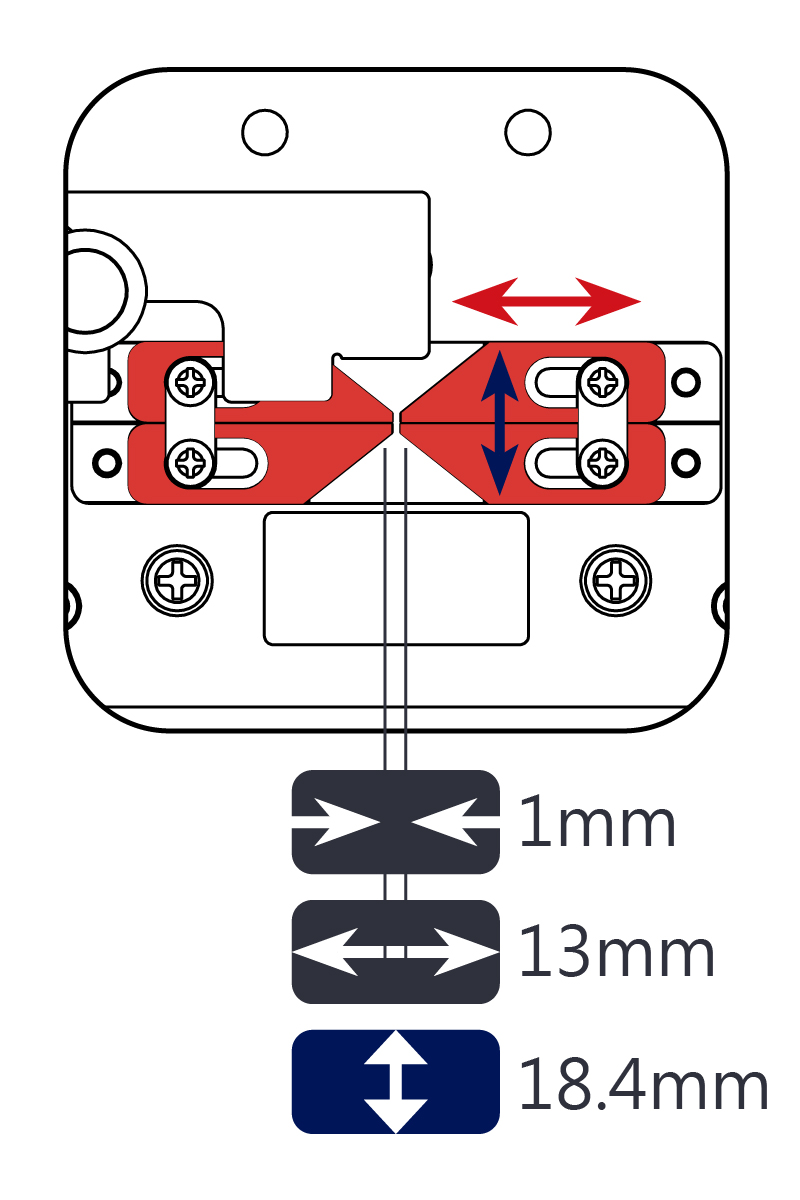

 DUT Size  2.5 x 2.0mm ~ 7.4 x 5.1mm
 Dimensions (approx.)  178x221x135mm (W/H/D)
 Weight (approx.)  1.32kg
 Operating Temperature  10℃ ~ 40℃
 Applicable Models  6632+Series / 6632S+Series /6350+Series
