Hi pot Tester 7631 (8 Channel)
8 Channels Hi pot ACW 5KV/30mA Hi pot DCW 6KV/10mA Insulation 1KV/12000MΩ Arcing detection True RMS measurement circuit Measuring Time (0.1 ~ 999s) Adjustable ramp time (0.1 ~ 10s) Safety Switch(INTER LOCK) Option PC Link Software 7508/7516 (8/16 channels) expansion box Support AC 5000V, DC 6000V, Insulation Resistance 12GΩ MICROTEST 7631 is a 3-in-1 test instrument that supports AC withstand voltage, DC withstand voltage, and insulation resistance testing functions. It has a maximum AC withstand voltage of 5000V with a leakage current of 30mA, a maximum DC withstand voltage of 6000V with a leakage current of 10mA, and a maximum insulation resistance of 12000MΩ. It provides 8 sets of testing channels and can be optionally equipped with the 7508/7516 multi-channel scanning box, allowing up to 72 sets of testing channels. It supports PC connection software for remote programming and storage of test data. It can also be linked to a barcode scanner for barcode scanning, facilitating production traceability management.
Inquiry Compare


Hi pot Tester 7630 (Single Channel)
Hi pot ACW 5KV/30mA Hi pot DCW 6KV/10mA Insulation 1KV/12000MΩ Arcing detection Measuring Time (0.1 ~ 999s) Adjustable ramp time (0.1 ~ 10s) Safety Switch(INTER LOCK) Option PC Link Software Support AC 5000V, DC 6000V, Insulation Resistance 12GΩ MICROTEST 7630 is a 3-in-1 test instrument that supports AC withstand voltage, DC withstand voltage, and insulation resistance testing functions. It has a maximum AC withstand voltage of 5000V with a leakage current of 30mA, a maximum DC withstand voltage of 6000V with a leakage current of 10mA, and a maximum insulation resistance of 12000MΩ. It supports PC connection software for remote programming and storage of test data. It can also be linked to a barcode scanner for barcode scanning, facilitating production traceability management.
Inquiry Compare

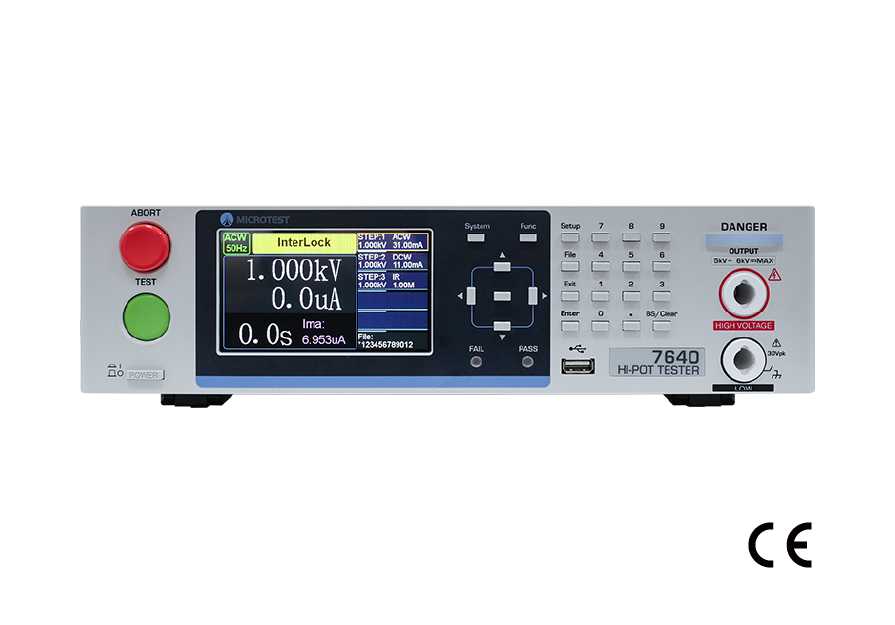

Hi pot Tester 7640 (Single Channel)
AC Withstand Voltage up to 5000V DC Withstand Voltage up to 6000V Insulation Resistance up to 100GΩ Supports up to 72-Channel Test (7508A / 7516A) Programmable Ramp / Dwell / Fall Time (0.1s~99.9s) Arc Detection Function True RMS measurement circui Safety Interlock Protection PC Connectivity and Remote Control Support 7640/7641 Hipot Tester is a 3-in-1 safety tester integrating AC Withstand Voltage, DC Withstand Voltage, and Insulation Resistance (IR) measurement functions. It provides AC hipot output up to 5kV with leakage current up to 30mA, and DC hipot output up to 6kV with leakage current up to 10mA. The insulation resistance test supports output voltage up to 6kV, with a measurement range from 200kΩ~100GΩ. For production line applications, the system supports multi-channel configurations: the 7641 offers up to 8 test channels per unit and can be expanded via 7508A / 7516A scanning boxes to a maximum of 72 channels. In addition, the instrument supports PC connectivity software and USB storage for test data.
Inquiry Compare

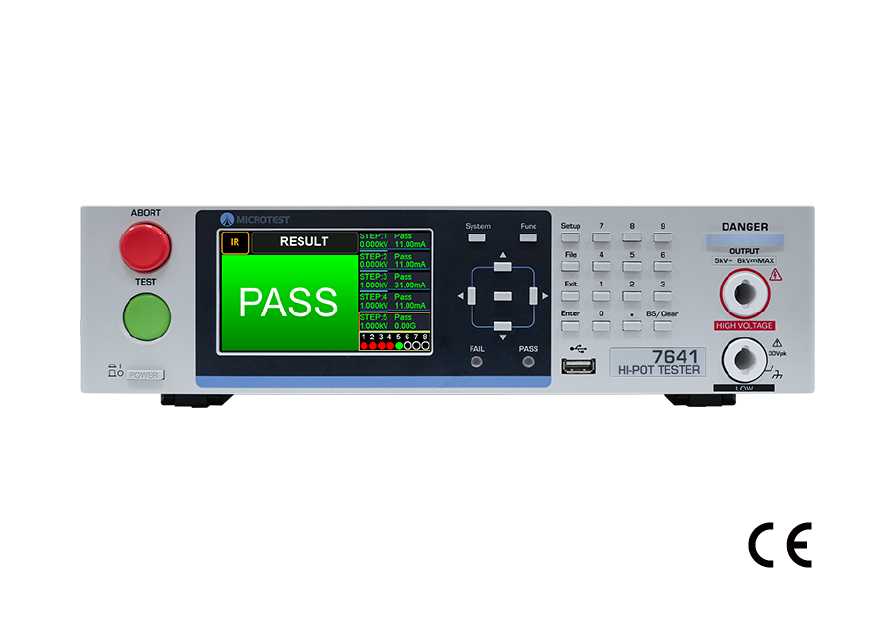

Hi pot Tester 7641 (8 Channel)
AC Withstand Voltage up to 5000V DC Withstand Voltage up to 6000V Insulation Resistance up to 100GΩ Supports up to 72-Channel Test (7508A / 7516A) Programmable Ramp / Dwell / Fall Time (0.1s~99.9s) Arc Detection Function True RMS measurement circui Safety Interlock Protection PC Connectivity and Remote Control Support 7640/7641 Hipot Tester is a 3-in-1 safety tester integrating AC Withstand Voltage, DC Withstand Voltage, and Insulation Resistance (IR) measurement functions. It provides AC hipot output up to 5kV with leakage current up to 30mA, and DC hipot output up to 6kV with leakage current up to 10mA. The insulation resistance test supports output voltage up to 6kV, with a measurement range from 200kΩ~100GΩ. For production line applications, the system supports multi-channel configurations: the 7641 offers up to 8 test channels per unit and can be expanded via 7508A / 7516A scanning boxes to a maximum of 72 channels. In addition, the instrument supports PC connectivity software and USB storage for test data.
Inquiry Compare
